I’m looking for a way to improve Picard’s matching of my music to the database.
My music is from CDs that I own and have ripped with EAC. They have the Catalogue number from the CD as a metadata and Picard recognises it as the Catalogue number.
How can I make it use it?
For example, 0093624657729 should match to two entries in the data base for Eric Clapton, Pilgrim.
(There is a release in the UK and one in the US.) Both have Reprise Records as the label. Instead, it matches to a Canadian Entry and includes Duck Records in the Record label.
I’ve also included the ISRC numbers in my files for each track.
So how can I nudge Picard to search the way I think it should? and get the right metadata for my files?
I once asked a similar question. But about the main site because I didn’t spot the bigger search. Look up at the top centre of the menu of the website for the search. And use Search Entities
Now you can search Barcode, cat no, and other details
Combine this with the “Browser Lookup” in Picard and you can find your exact matches to transfer back to Picard with the green Tagger button.

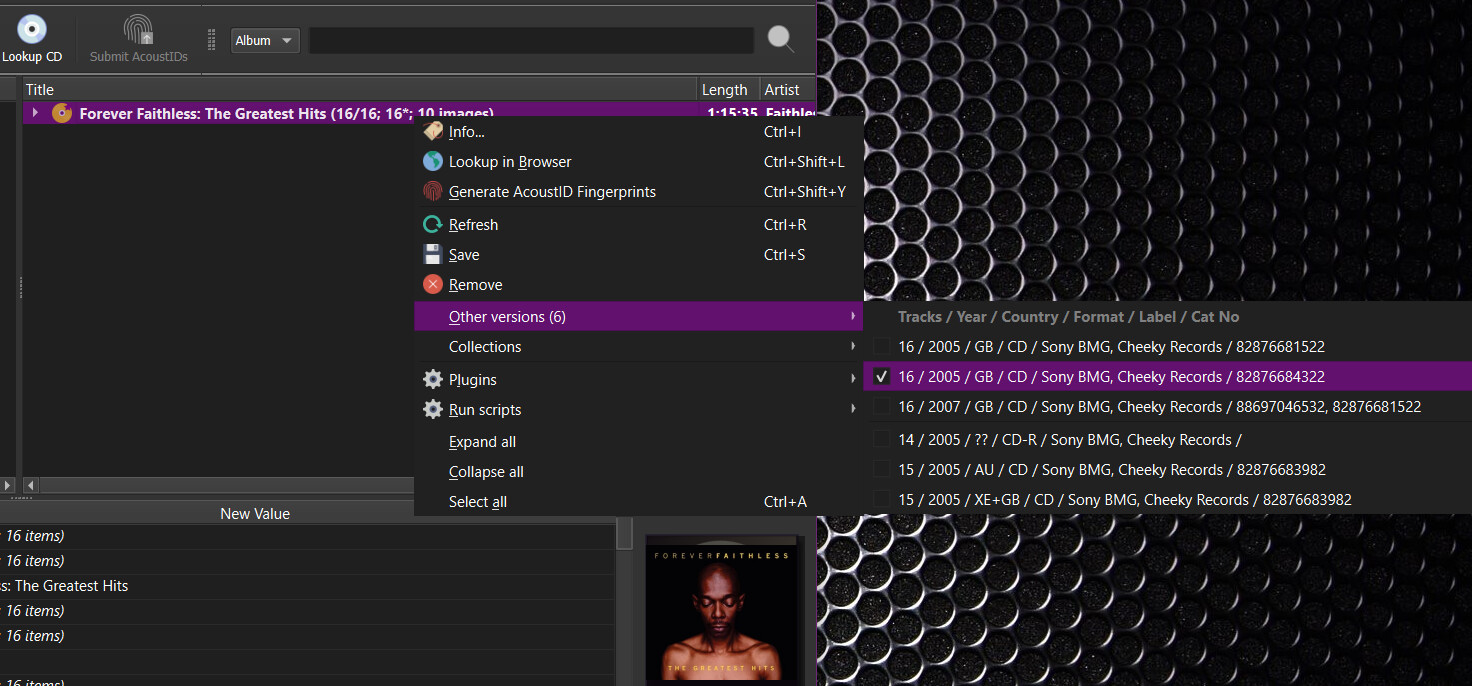

When you load the CD into Picard, and have it sitting in the right panel, have you found the Other Versions menu? This is what I used for most of my CDs
have not been inserting cds as i ripped them with eac years ago and they are in boxes. Trying to avoid getting then out as it will take ages to go through the lot!
I too ripped 500+ CDs with EAC, and would then pass the resulting digital files to Picard to get the exact edition. Normally using that Other Versions pop-out menu. Sometimes needing to click the Lookup in Browser button to make a more exact selection. Pressing the Green TAGGER button to load that version back to Picard.
(Wish I knew about that “Search for Similar Albums” @Sophist has just pointed out when I was doing my main tagging )
You can paste the TOC from your logs into that page and it will lookup the CD in the database. Not perfect as sometimes common discs are on the wrong edition, but helps narrow things down in an alternate way.
Well, after your response, I went to find the actual CD! I tried it out in Picard. It matches to the AU version, because (my guess) is that it is the only one that has a matching Barcode Number… of 093624657729 (with a leading zero removed) vs the Catalog number I have from EAC of 0093624657729?
I went off and read the definitions of Catalog Number and Barcode number in the MusicBrainz documentation. I don’t understand why they are defined the way they are. My physical CD has a barcode on the back of the CD, with 09362-46577-2 printed underneath. The catalog number of 0093624657729 is what EAC read and put in the CUE file.
If I look at all the entries that are shown in the screenshot, then none of them seem to make sense to me when I look at the CD in my hand. The US, GB and AU ones have a number that matches to the Catalog Number EAC read and put in the CUE file. It’s just that it’s called Barcode.
It might be interesting to see how many of the EAC catalog numbers match to Barcodes in the database…
Thanks for the link to the lookup site. Yes, I do have my logs. This one was done in 2007! with a 99.9% quality and overall confidence. The TOC matches back to the same set of choices. I also have the freedb discid in the CUE file = DF11BC0E. Unfortunately, not found in Musicbrainz.
Where is EAC going to read a catalogue number from? That will just have been a lookup in an online database (best guess). Having the physical media in hand will be your main way to match the exact edition.
It is quite common you find a barcode used as a catalogue number. I would trust the media in hand more than EAC.
With physical CD case in hand you can look at any attached artwork and spot the little differences. Especially on the rear of the case. If there is no artwork, look for the discogs links and check that artwork too.
A CD from a popular artist like Eric Clapton can be trickier to get an exact match on as so many editions will have been printed over the years. Discogs lists 17 variations of editions with that barcode
My understanding is that EAC reads it from the physical CD disk, not a database!
It is put on the disk as part of the production / mastering process of creating a CD. It is defined in the CUE file that is used to write the disk, same as the ISRC numbers for each Track:. This view is based on all these docs:
CATALOG – A 13-digit UPC/EAN code, also referred to as the Media Catolog Number (MCN). 12-digit UPC codes should be prefixed with a “0”.
Blockquote
I just ripped the Pilgrim CD using CueRipper - part of Cuetools and got a CATALOG number of 0093624657729. The same value as EAC. If you google the number, you’ll see it showing up as the EAN in lots of places.
So, if my understanding is correct, the catalog id from the disk is critical information. We should have a database of these numbers that match to the actual releases. I don’t understand why musicbrainz doesn’t have this mapping. It is what should be in the catalog number field.
Well, I learnt something new. I always assumed EAC was just a perfect audio ripper. I didn’t realise there was much other data coming from the CD. But as @chaban points out, you have a Barcode there with extra zero padding. The Catalogue number in MB language is the Record Catalogue number as used by the Record Label and found on printed the spine of the CD case.
You still end up with a similar problem - the EAN\UPC\Barcode gets you close, but you’ll need to check the artwork in hand to be exact. It depends how detailed you want to get.
Well, I learnt something new. I always assumed EAC was just a perfect audio ripper. I didn’t realise there was much other data coming from the CD
Yes, You can see in the CUE file, places to put the Title, Performer, Track Name and Track performer.
The early CD players could actually read this info off the CD and display it in a LED display. There were two problems: 1) CD players were very expensive - over $500 and 2) enough CDs were made without the information on the disk that caused a problem of people thinking the player was broken. To get the price down and to stop all the returns, they took the display off the players.
The Catalogue number in MB language is the Record Catalogue number as used by the Record Label and found on printed the spine of the CD case.
It’s confusing as all the tagging systems use catalog number to mean the value off the disk. At a minimum, I think MB should update its documentation to make it clear. “This is not the catalog number you are looking for” . How does this get done?
the EAN\UPC\Barcode gets you close, but you’ll need to check the artwork in hand to be exact
Yes, and the plot thickens:
the number under the printed bar code on the Pilgrim CD is 09362-46577-2
So there’s confusion about what is in the barcode field:
is it the plain number 0093624657729 that a bar code scanner reads which is 13 digits and therefore is an UPC/EAN number OR
is it the number printed underneath “09362-46577-29” (a variation of the 12 digit number) OR
a 12 digit MCN? eg 093624657729
(I also checked my copy of Pink Floyd, Dark Side of the Moon; There is no catalog number on the actual disk. The barcode on the back of the case is 7777-46001-2, when I read it with a barcode scanner, it reads as 0077774600125 which almost matches the bar code field in the data base for the specific version of the CD that I have if you add a leading 0. Someone must have read the bar code with a scanner as the check digit isn’t printed on the case)
Yes, EAC can read the UPC/EAN from the CD-Text. But.
This # retrieved from the CD is oftentimes not the same as on the printed artwork. Represses, different plants and labels etc etc etc. And even more often the catalog # data is not there at all, some software incuding EAC then just returns a string of 0s.
I think the confusion is more that MB is not a tagging database. It is first a database for documenting different releases. Second it is also a useful tagging database. So once the translation is in your head for catalogue equals Barcode it is easy.
And you have only just started looking down the Rabbit Hole of Madness that is different versions of CDs! A single barcode\EAN\UPC will cover many different variations of a release.
One thing to notice is the barcodes in MB will always drop the dashes when typed in. Nearly always skips the extra zero, but will check the maths of that check digit on the end.
Older disks, older standards. Bet there also isn’t a SID code printed in the matrix too.
MB is more about the visual. What can be seen on the paperwork and external packaging. Those discIDs are calculated just from the TOCs, but this does take into account that different editions will have different edits of the tracks. Dark Side of the Moon being a good example.
I think the confusion is more that MB is not a tagging database. It is first a database for documenting different releases. Second it is also a useful tagging database. So once the translation is in your head for catalogue equals Barcode it is easy.
surely being able to tag well is the main motivation?
What’s recommended instead?
The main motivation here is a big catalogue of all released editions of an album music in all forms, but IMHO there is no better source of data than MB. If anything there is TOO MUCH data here when all you need to do is tag some digital tracks.
If it was only for tagging, there would be no point in listing all the vinyl, 8-tracks and everything else.
The database will get you close with that barcode, but you then have some manual work to get the last few steps. And beware - the more you realise the little details the more fussy you will get at an exact match.
Before joining MB to tag some albums I didn’t even know where UDEN was!!
)
I tried it out in Picard. It matches to the AU version, because (my guess) is that it is the only one that has a matching Barcode Number… of 093624657729 (with a leading zero removed) vs the Catalog number I have from EAC of 0093624657729?
